Understanding ClusterIP

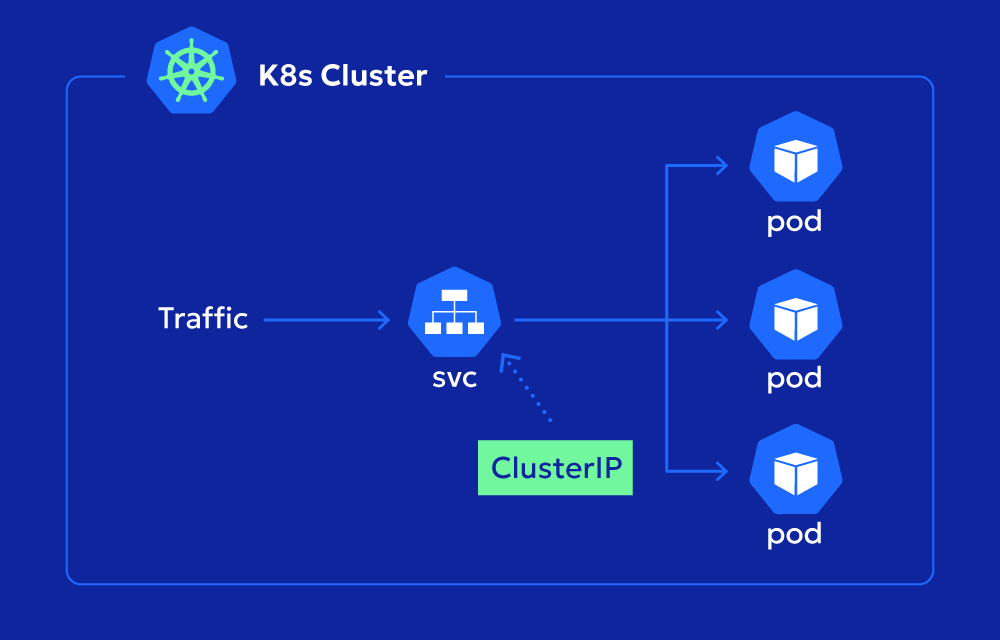

When you create a Service with type: ClusterIP, Kubernetes automatically assigns a virtual, internal IP address from a reserved range within the cluster. This IP is only reachable from within the cluster’s virtual network. Under the hood, Kubernetes uses mechanisms like iptables or IPVS to route traffic directed at the ClusterIP to the correct backend Pods.

Key Characteristics

  • Internal Reachability Only: Communication happens exclusively within the cluster.
  • Stable IP: The Service IP remains constant, even if the underlying Pods change or get replaced.
  • Built-In Load Balancing: Requests are round-robined or load-balanced to healthy Pods behind the Service.
  • Service Discovery: By default, Kubernetes DNS automatically resolves the Service name to the ClusterIP, simplifying Pod-to-Service connections.

What Is the Difference Between ClusterIP and Load Balancer?

  • Accessibility:
    • ClusterIP: Only accessible within the cluster.
    • LoadBalancer: Exposes the Service externally using a cloud provider’s load balancer (e.g., AWS ELB, Google Cloud Load Balancer).
  • Use Cases:
    • ClusterIP: Ideal for microservices communicating internally or for databases that shouldn’t be publicly exposed.
    • LoadBalancer: Best for applications that need to serve traffic from the internet or from outside the cluster.
  • Cost & Complexity:
    • ClusterIP: Simplifies internal network flow; no additional cloud costs.
    • LoadBalancer: Incurs charges from the cloud provider but offers automatic provisioning of external-facing load balancers.

What Is the Difference Between Pod IP and ClusterIP?

  • Scope:
    • Pod IP: An IP address assigned to a single Pod. This IP is ephemeral and can change as Pods are created or terminated.
    • ClusterIP: A stable, virtual IP assigned to a Service, representing one or more Pods.
  • Usage:
    • Pod IP: Generally used for direct Pod-to-Pod communication. However, relying on Pod IPs can be brittle because Pods can be rescheduled, causing IP changes.
    • ClusterIP: Provides a consistent endpoint for Pods to communicate with a backend, even if individual Pod IPs change.
  • Reliability:
    • Pod IP: Not guaranteed to remain the same if a Pod restarts or moves to another Node.
    • ClusterIP: Maintains continuity and load balancing, offering a layer of abstraction over ephemeral Pod IPs.

ClusterIP vs. NodePort

  • Service Access:
    • ClusterIP: Accessible only within the cluster.
    • NodePort: Exposes the Service on a static port on each Node’s IP address, allowing external traffic (but usually not recommended directly for production).
  • Complexity & Control:
    • ClusterIP: Simplifies internal communication, no external ports needed.
    • NodePort: Useful for minimal external access in testing or in environments without a LoadBalancer.
  • Typical Usage:
    • ClusterIP: Default choice for microservices that talk to each other within the cluster.
    • NodePort: Quick way to expose a Service outside the cluster without a full external load balancer, but it can be limited (e.g., ephemeral ports).

ClusterIP Service Examples

Simple Web Service


  EditapiVersion: v1
kind: Service
metadata:
  name: my-web-service
spec:
  selector:
    app: my-web-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

  • Usage: A set of Pods labeled app=my-web-app will be load-balanced on port 80 (forwarding to Pod port 8080). Other Pods in the cluster can reach this Service at my-web-service.default.svc.cluster.local:80.

Internal Database Service


  EditapiVersion: v1
kind: Service
metadata:
  name: internal-db-service
spec:
  selector:
    app: internal-db
  ports:
    - port: 5432
      targetPort: 5432
  type: ClusterIP

  • Usage: Pods needing database access can connect to internal-db-service.default.svc.cluster.local:5432. The database Pod IP might change, but the Service endpoint remains the same.

Multiple Port Service


  EditapiVersion: v1
kind: Service
metadata:
  name: multi-port-service
spec:
  selector:
    app: multi-container-app
  ports:
    - name: http
      port: 80
      targetPort: 8080
    - name: metrics
      port: 9090
      targetPort: 9090
  type: ClusterIP
  • Usage: Provides two ports—HTTP and metrics—on a single Service. This is useful for applications that need separate endpoints (e.g., user traffic and metrics scraping).

Best Practices

  1. DNS over IP: Always access the Service by its DNS name rather than hardcoding IP addresses.
  2. Label Management: Ensure the Service selector and Pod labels match precisely.
  3. Network Policies: Combine ClusterIP with Kubernetes Network Policies to restrict or allow internal traffic.
  4. Resource Limits and Probes: Configure readiness and liveness probes so that Pods are only added to the Service when they’re healthy.

References

  1. Kubernetes Documentation: Services
  2. Kubernetes DNS Overview
  3. Kubernetes IPVS vs. iptables
Kubernetes strategies straight to your inbox

No spam, simply tips to make you better at your job.

In summary, a ClusterIP Service provides a stable, internal endpoint for your Pods in Kubernetes, ensuring consistent communication within the cluster. It differs from external-facing Service types like LoadBalancer, which expose traffic outside the cluster, and NodePort, which binds your Service to a port on every Node. Meanwhile, ClusterIP acts as a more reliable alternative to referencing Pod IPs directly, because it abstracts away the ephemeral nature of individual Pods. By following best practices—like using DNS, managing labels correctly, and employing proper Network Policies—teams can streamline internal Kubernetes traffic and enjoy a more robust, secure microservices architecture.
